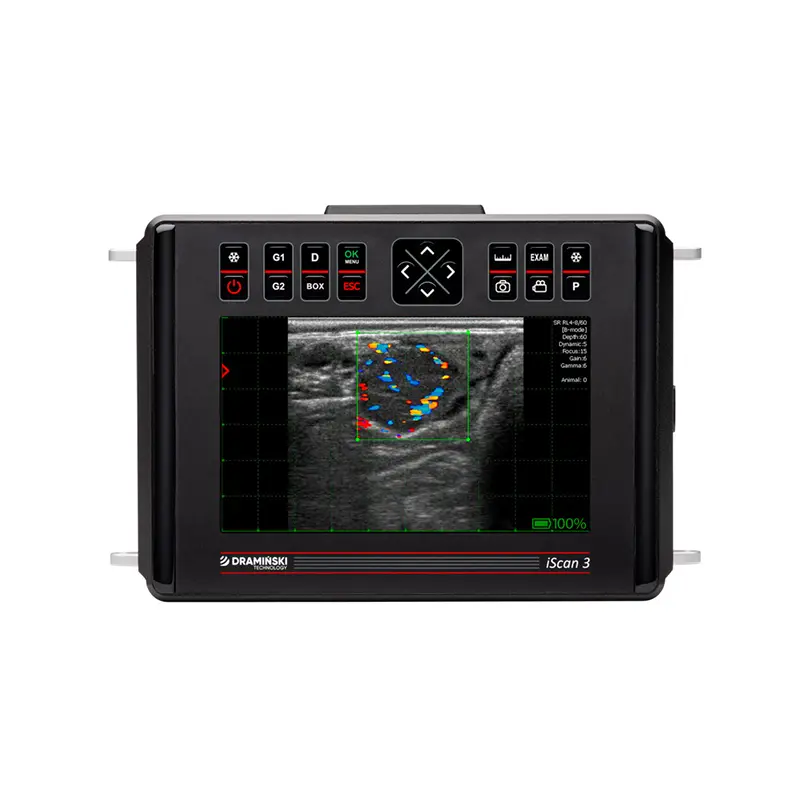

DRAMINISKI iScan 3

Der iScan 3 ist ein modernes, tragbares veterinärmedizinisches Ultraschallgerät, das in Polen entwickelt und hergestellt wurde und für anspruchsvolle Feldeinsätze konzipiert ist. Es wird von Tierärzten weltweit für seine außergewöhnliche Bildqualität und seine Robustheit unter schwierigen Bedingungen geschätzt. Ideal für die Reproduktionsdiagnostik bei Rindern und Pferden eignet es sich dank austauschbarer Sonden und flexibler diagnostischer Möglichkeiten auch perfekt für abdominale, respiratorische, mammäre und muskuloskelettale Untersuchungen.
CHF 0.00 CHF 0.00

Kontaktieren Sie uns

iScan 3 Ultraschallscanner for the field work


Versatility


A constantly growing range of compatible probes offers flexibility in patient approach. The iScan 3 is used for:

  • Examination of the reproductive system

  • Blood flow diagnostics of the corpus luteum

  • Pregnancy diagnosis and monitoring

  • Determination of the viability and sex of the fetus

  • Lung, digestive tract, udder, and musculoskeletal examinations

What sets the latest iScan 3 ultrasound scanner apart?

Color Doppler

The color Doppler imaging mode allows diagnosis of corpus luteum activity 18-20 days after insemination. This makes it possible to identify cows that have not been fertilized before the next estrus cycle. Instant activation and optimized settings ensure working comfort and ease of use.

Improved ergonomics

The most important functions are accessible via the keyboard. Special key combinations speed up your work, with the most recently used measurements set as default. You can also customize the descriptions to suit your preferences.

Lightweight construction

When developing the ultrasound device, we used modern technologies to reduce its weight. The total weight of the ultrasound device, including the probe and battery, is only 2.6 kg. This means that working for long hours with portable equipment is not a burden for a field veterinarian.

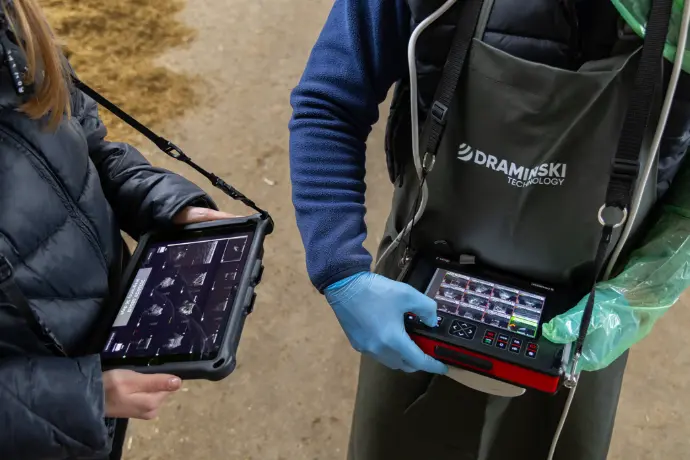

Wireless image transmission

The integrated WiFi module enables wireless transmission of ultrasound images to tablets, phones, and iLens glasses. Pet owners or students can view the live image from a safe distance, increasing accessibility and convenience.

Larger display, higher diagnostic precision

For your convenience, we have incorporated a large 7-inch LCD display with wide viewing angles. We understand that you often work in difficult conditions, which is why we have reinforced the screen to increase its resistance to damage.

Technische DatenThe set includes:

Technische Daten



Imaging modes

B Mode

Color Doppler

Frequency

range: 2-12 MHz

(depends on probe)

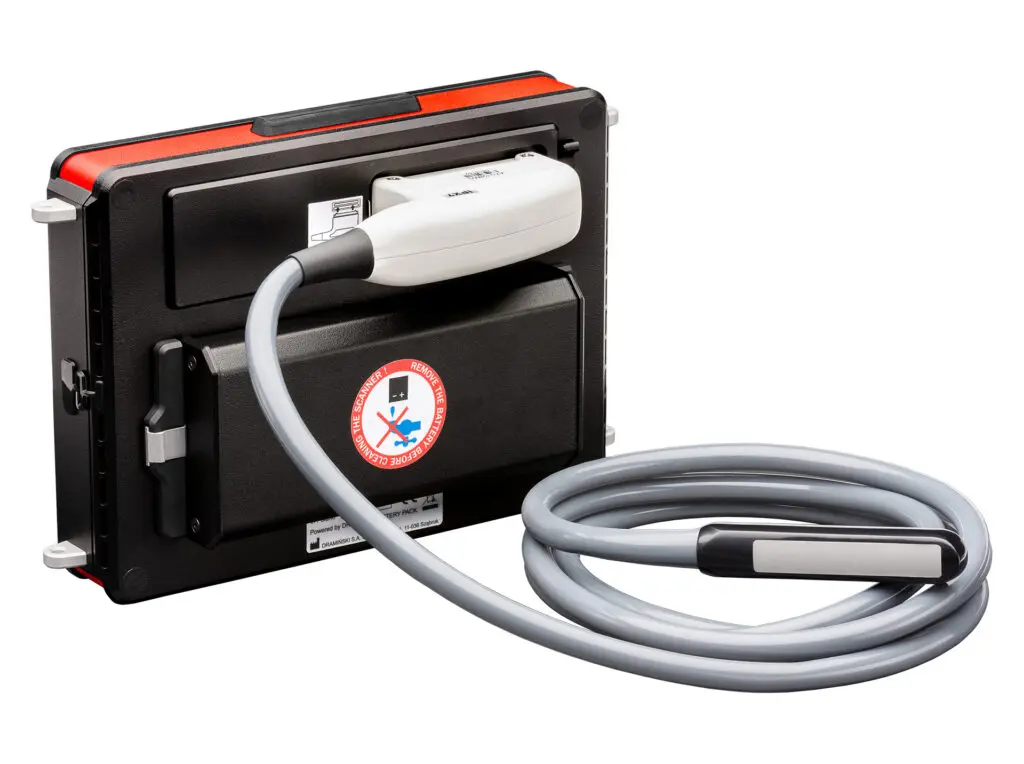

Probes

Convex 2-8 MHz

Abdominal linear 4-12 MHz

Microconvex 4-9 MHz

OPU 4-9 MHz

Rectal linear 4-9 MHz

Rectal convex 2-8 MHz

Dynamic Focus

Yes

Image management

Freeze

Invert left-right

Saving images

Saving cine loops

Imaging adjustment

Dynamic range

Sun mode

LuciD

Presets

Depend on probe:

Cow Repro, Pregnancy, Sexing, Uterus

Equine Repro, Tendons, Testicles

Foal Abdomen

Dog Abdomen

Foetus

Sheep

Foal Lungs

Postprocessing

Yes (LuciD)

Measurements

Basic: Distance, Follicle, Ellipse Area, Grid

Obstetric package: aging tables for different species

Doppler: Flow Area %

Workflow tools

Animal counting

Refined, ergonomic keyboard with backlight

Display

7″ LCD LED

500 cd/m2

800 x 480 px

Control panel

Membrane keyboard with backlight

Memory

8GB

Exported file format

PNG, MP4

Exporting data method

To external flash drive (USB-C)

To mobile App by WiFi

Multimedia ports

USB-C

WiFi connection to mobile devices

Yes, built in. Devices based on Android and iOS operating systems. Draminski iScan App required.

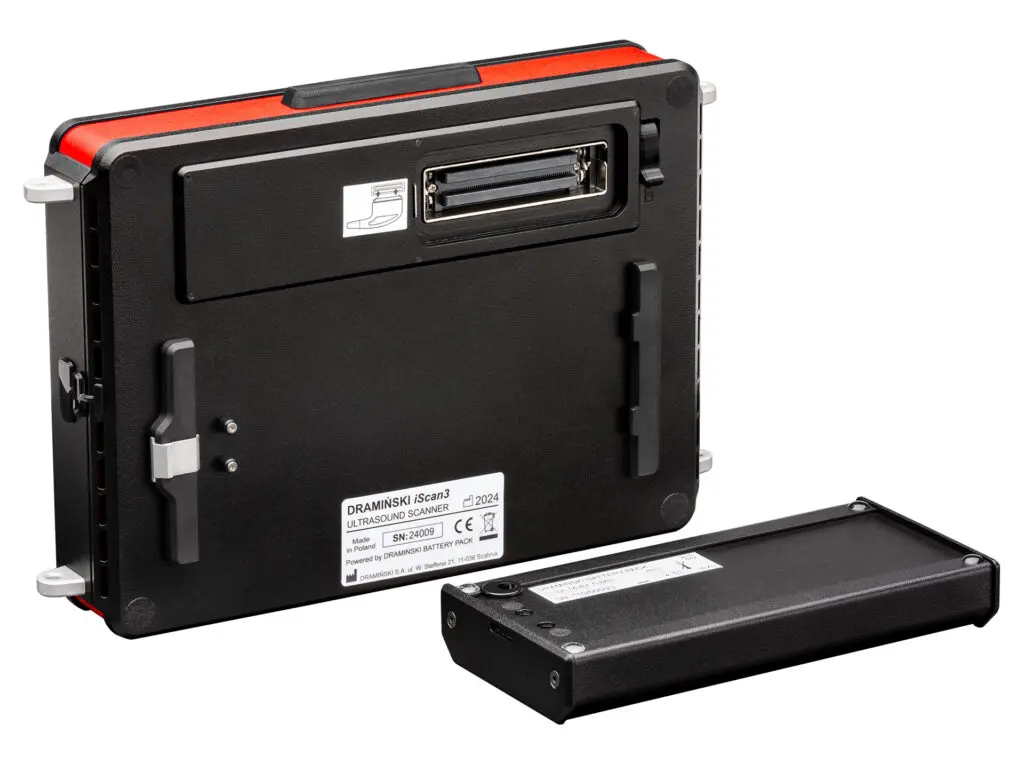

Power supply

External battery

Battery operating time

Up to 4 h

Battery charging time

Up to 4 h

Booting time

About 25 s

Dimensions

Width 27 cm, Height 18 cm, Depth 7 cm

Weight (with probe and battery)

2.6 kg

Ingress Protection (IP) rating

IP32

Accessories

Stand

iLens wireless goggles

OPU

Extension and T-holder for rectal convex probe

Transport bag

Suspenders

Waist belt

Standoff

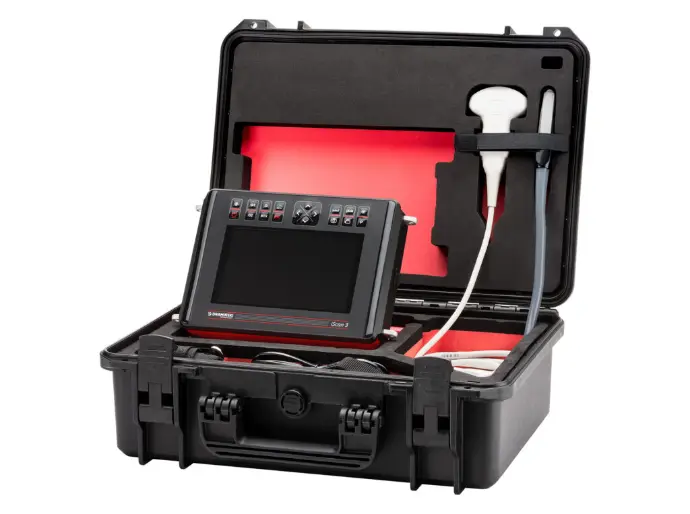

The set includes:



  • iScan 3 Ultraschallscanner

  • Ultrasound probe of your choice

  • External battery

  • Battery charger

  • Suspenders

  • User manual (USB)

  • Transport case
